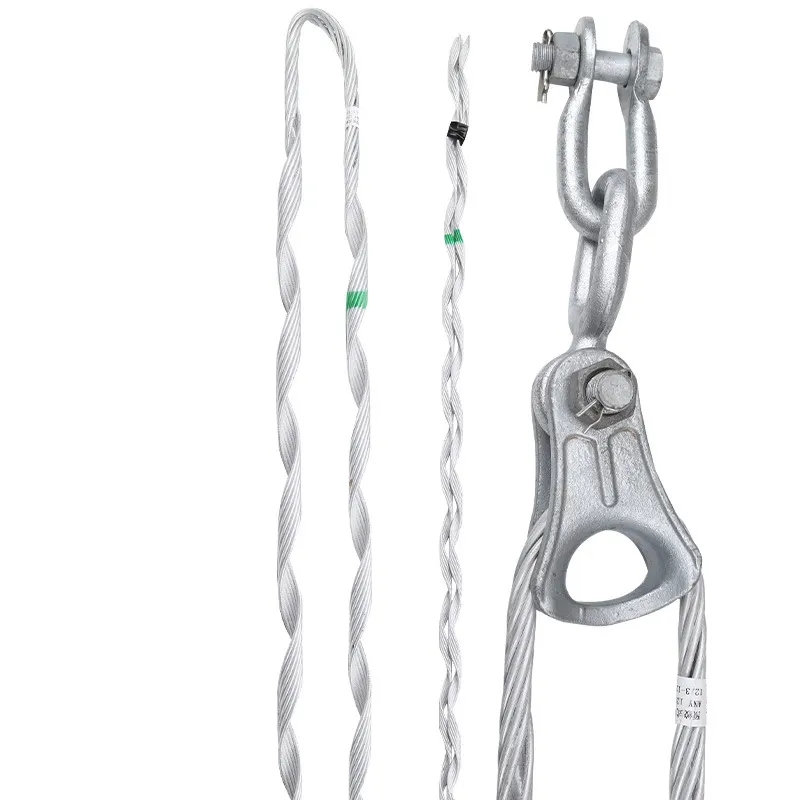

Optical Cable Fixed Overhead Lines Optical Cable Optical Fiber Protection OPGW Pre-Twisted Tension Clamp
OPGW Cable Fittings
Composition: structural reinforcement bar, outer stranded wire, overhanging component, connecting fittings (U-shaped hanging ring, ZH-shaped right-angled hanging ring), structural fasteners, etc.
Uses: To support, suspend the optical fiber composite overhead ground wire on a linear pole tower or a pole tower with a rotation angle ≤25°.
Features:
1. The overhang clamp has a large contact area with the OPGW optical cable, the stress distribution is uniform, and there is no stress concentration
At the same time, the rigidity of the optical cable at the hanging point is enhanced, which plays a better protection role.
2. It has good dynamic stress bearing capacity and can provide sufficient grip strength (18%UTS) to protect OPGW
The optical cable runs safely under unbalanced load conditions, and the outlet drape angle (single side) can reach 15°
-18°.
3. The structure is equipped with flexible rubber clips, which enhances self-damping and reduces wear.
4. The end is rounded to improve the corona voltage.
5. The high-quality aluminum alloy material improves the mechanical properties and anti-corrosion performance of the clamp, greatly extending the service life.
Order notice:
1. According to the parameters such as the outer diameter of OPGW optical cable, select the appropriate suspension clamp.
2. Quantity configuration: 1 set/straight pole tower or corner tower with a turning angle less than 25°.
3. The rotation direction of the reinforcing strip of the clamp structure is opposite to the twist direction of the outer layer of OPGW, the standard configuration is in accordance with OPGW
The outer layer twist direction is right-handed. If the OPGW outer layer twisted direction is left-handed, it should be noted in the order contract.
4. According to the hanging point on the tower, select the appropriate coupling fittings (such as U-shaped screws, U-shaped hanging rings, UB Hanging board, etc.)
Advantage:
1, LJ Brand Since 1985, a professional power fittings solution brand
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
About us
POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.
Professional customer service, product development, technical Support and after Sale Service.
POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.
POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
Product Tags:
|
|

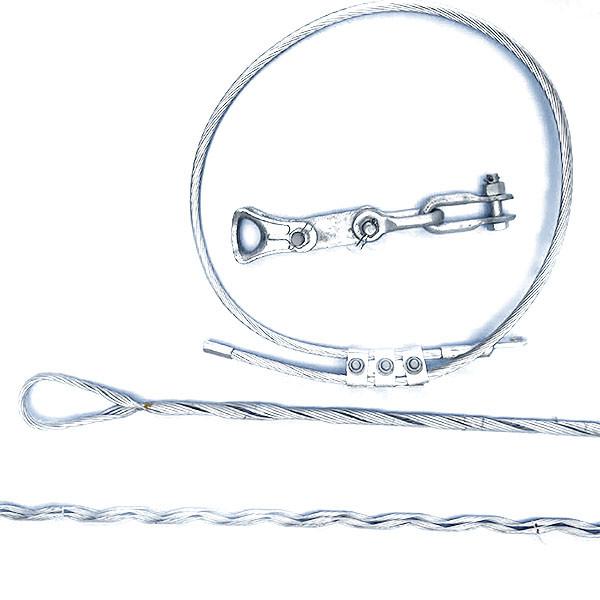

Overhead Cable Fittings High Voltage Electric Power Opgw Suspension Cable Clamp Images
|
